DECKLID/PROP
Click pics for larger images
Keep in mind this is for truck years only. Early years did not match a standard barndoor in some cases.

Years Face Lense Light assembly Backside Prop rod

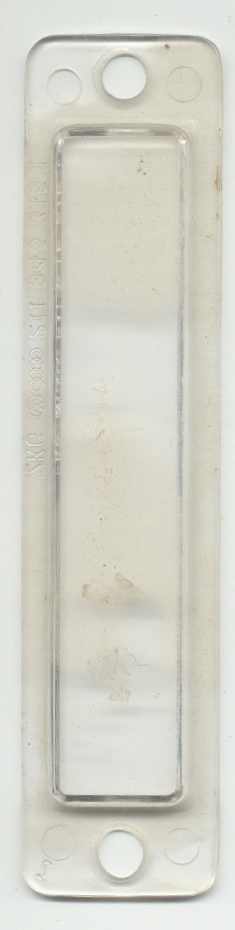

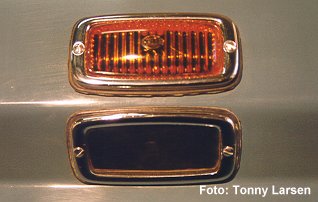

1952 only: 4 piece inner construction, large license light with chrome ring


(need pic)




1953=>mid55:

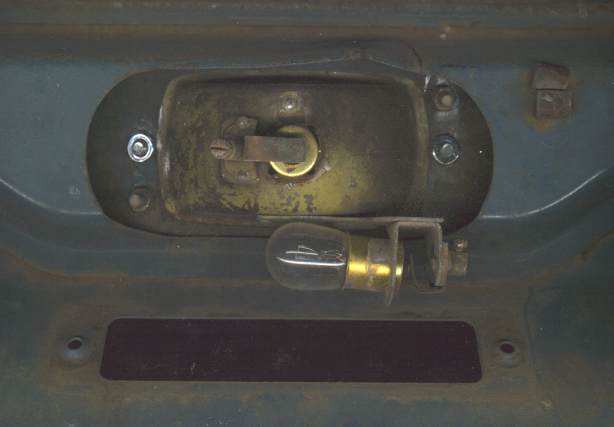

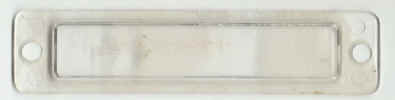

Still 4 piece construction. Changed to a thinner license plate light.

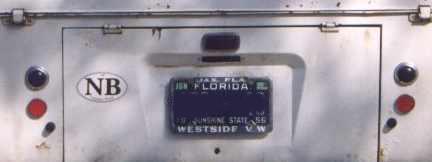

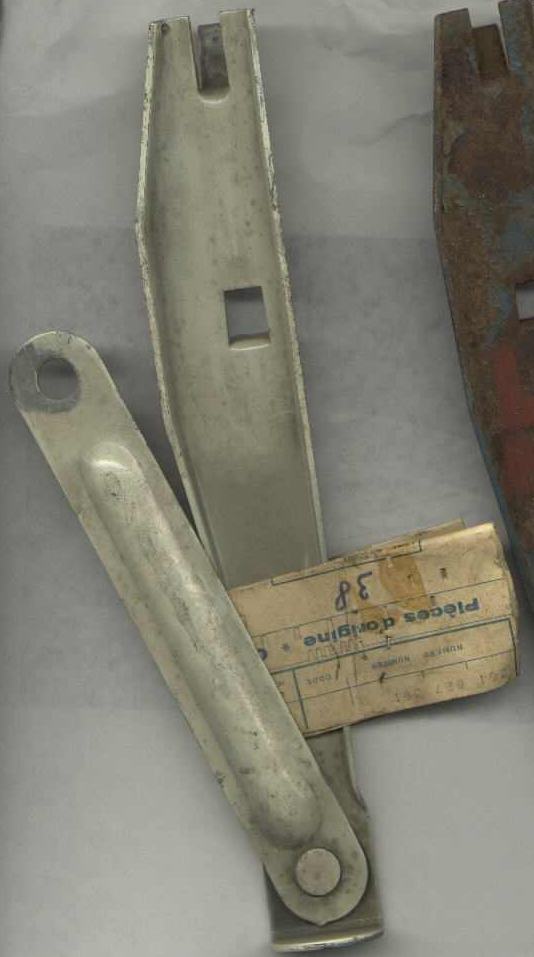

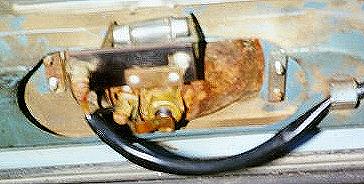

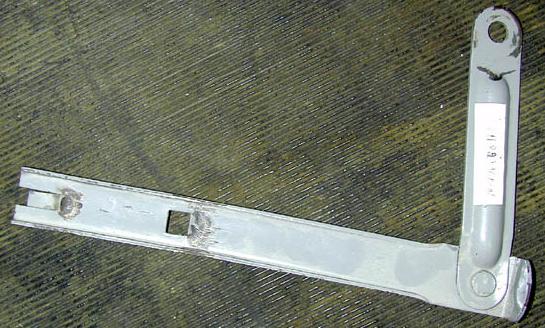

mid55=>mid56 decklid exactly the same as earlier year, but the removable 3rd brakelight holder changed. Prop rod also changed 57rear2.jpg (6967 bytes)

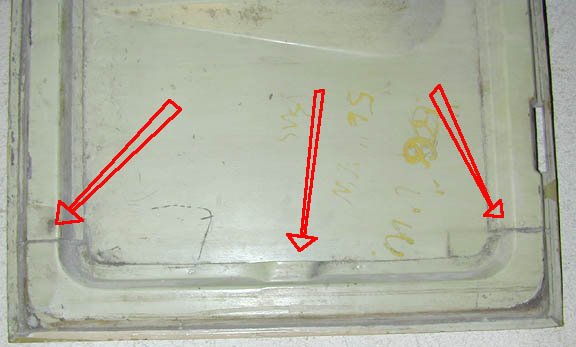

mid56=>mid 57 Changed to one piece inner construction. Front side remained the same. 57rear2.jpg (6967 bytes)



(need pic)


mid 57=>mid58 flat, no brake light. License plate light assembly changed, lens stayed the same, but mounted on the outside. 58decklid.jpg (2323 bytes)

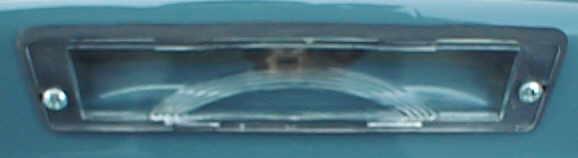

mid58=>mid64 Eyebrow added to top of lid overhanging license light. License light assembly changed.



(need pic)

(need pic)


mid64=>65

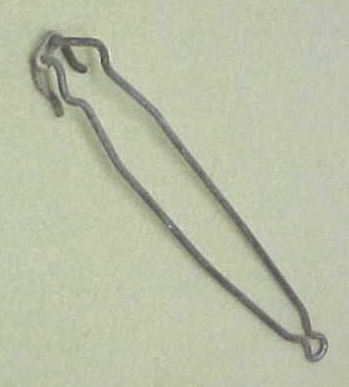

new prop rod.



(need pic)

(need pic)


1966
Changed decklid to accept new push button latch

(need pic)


(need pic)

(need pic)


1967

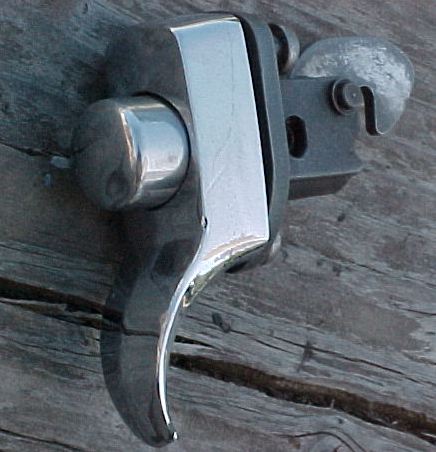

Added finger grab to decklid



(need pic) (need pic)
