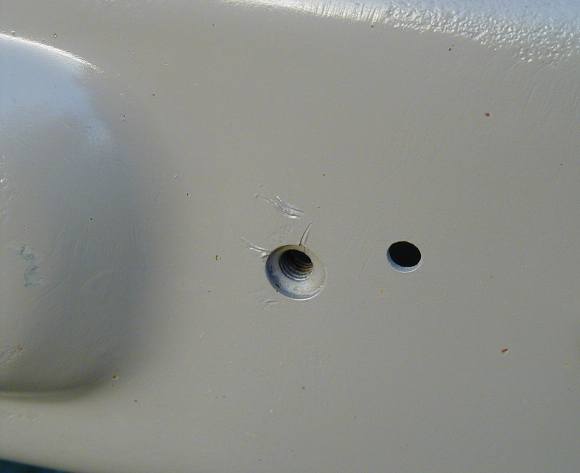

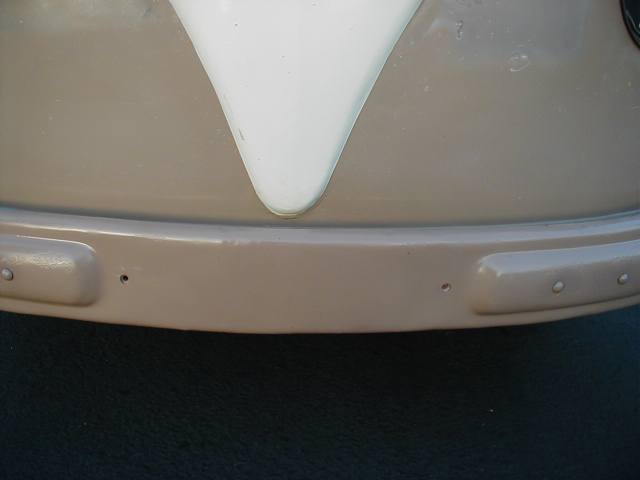

1952=>1955: commonly called the"Ribbed bumper": Two holes drilled with
threaded nuts welded to the back for license plate. Same as non-truck bumper of same
years.
1955=>mid56:Wolfsburg bus: same as 50-55 except that is doesn't
have any threaded inserts for the holes for the license
plate. Same as non-truck bumper of same years.
late 56=>July58:Hannover bus: Ribs were shortened, bumper bolts closer to
center -about 4 inches. no holes drilled at all for license plate. Same as non-truck
bumper of same years.
Aug58=>1965:"slash end": Overriders (also called
"monkey bars" and "towel bars") added to US models, Euro had same
bumper but with no overriders. Both american and euro bumpers were the Same as
non-truck bumper of same years.
1966=>1967:
"point end", Same as non-truck bumper of same
years
REAR
BUMPERS

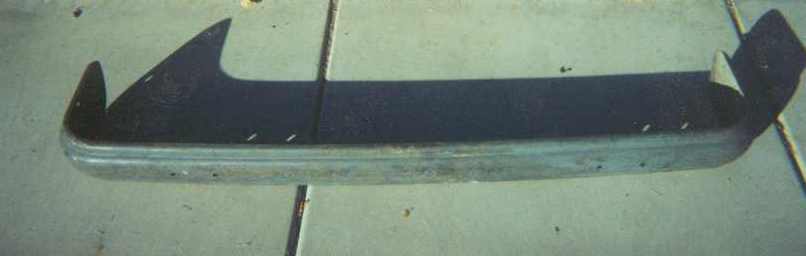

mid 54=>July1958Truck only: first year of rear bumper.
Truck rear:

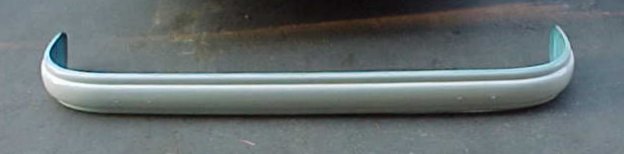

Standard bus rear:

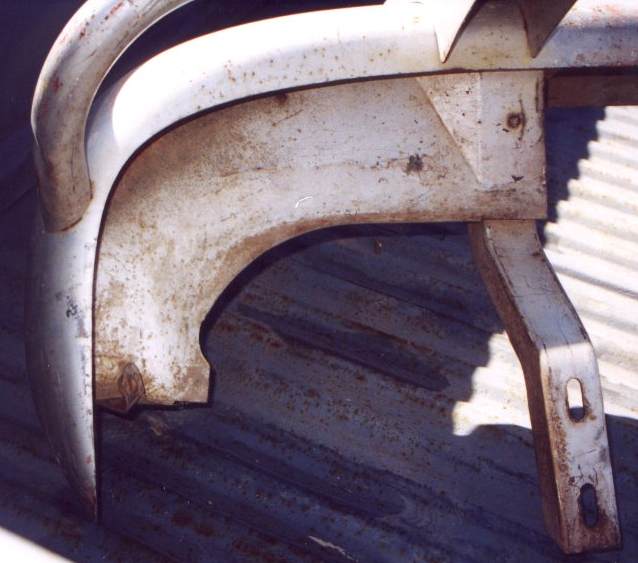

Aug1958=>jan1960

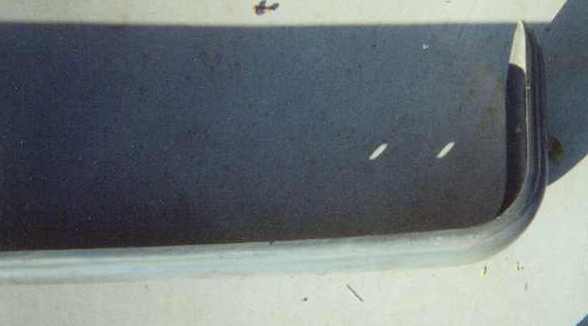

(some say mid 60)Truck only: This style was commonly called "slash end". U.S. model had
overrider tubes- also called "towel bars" and "monkey bars". This
bumper is actually identical to the mid60-65 bumper, except the inner upper corner of the
bumper is rounded out more to clear the truck square body corners. Many people are using
mid 60-65 bumpers and just rounding out the top corners themselves.
(Left pic is of Euro version.)
mid60=>1965
"slash end": VW changed the shape of the truck rear corners this
year, making them more rounder, so they could use a non-truck bumper instead.
1966=>1967 "point end", Bumper same as non-truck bumper of same years.
BRACKETS
1952=>mid1955
Ribbed bumper brackets,
fronts are 52=>mid55 barndoor only
Same as non-truck
Rear
Front
(need pic)
late55=>July58
Rear are the same as 52=>55. Fronts changed.
Same as non-truck
Aug58=>1967 non ribbed bumper brackets. Same as non-truck
need pic
need pic
SPLASH
PANS
1952=>1957

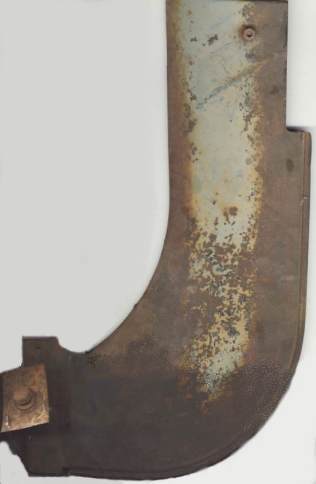

Trucks had their own special splash pan. Much wider in
the mid-section
Truck

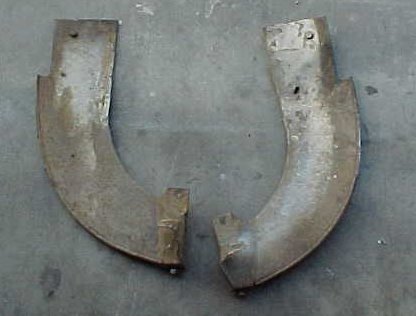

Standard bus
1958 only?. has the 52-57 seal and same outer curve, but has the later stamp on the
end like the 59-61 where it meets the bracket. (see below)
**Rumored to
exist**
..anyone got a pic?
(if it doesn't really exist, then the 52=>57 splash pan would be the correct one.)
1959 =>1961 has the 62-67 seal. The outer curve is the same as standard bus, not a
sharp corner. Inner curve is like the earlier models to clear the truck corners.
Note the bent curve at bracket.
1962=>1967 Trucks had the same splash pans as non-truck for these years, due to VW
changing the shape of the rear body corner curve on trucks..
