Double cab rear seat

This is under research. I am looking for info on original paint trucks and what their pedestals are, if different than this information.
Email me

(More info at bottom of page)

58 only

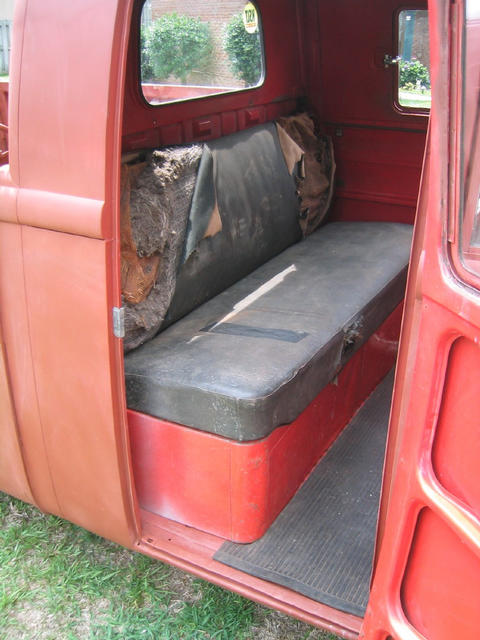

Curved pedestal, mounting tabs point inward. Black upholstery
Curved pedestal, mounting tabs point inward. Grey upholstery

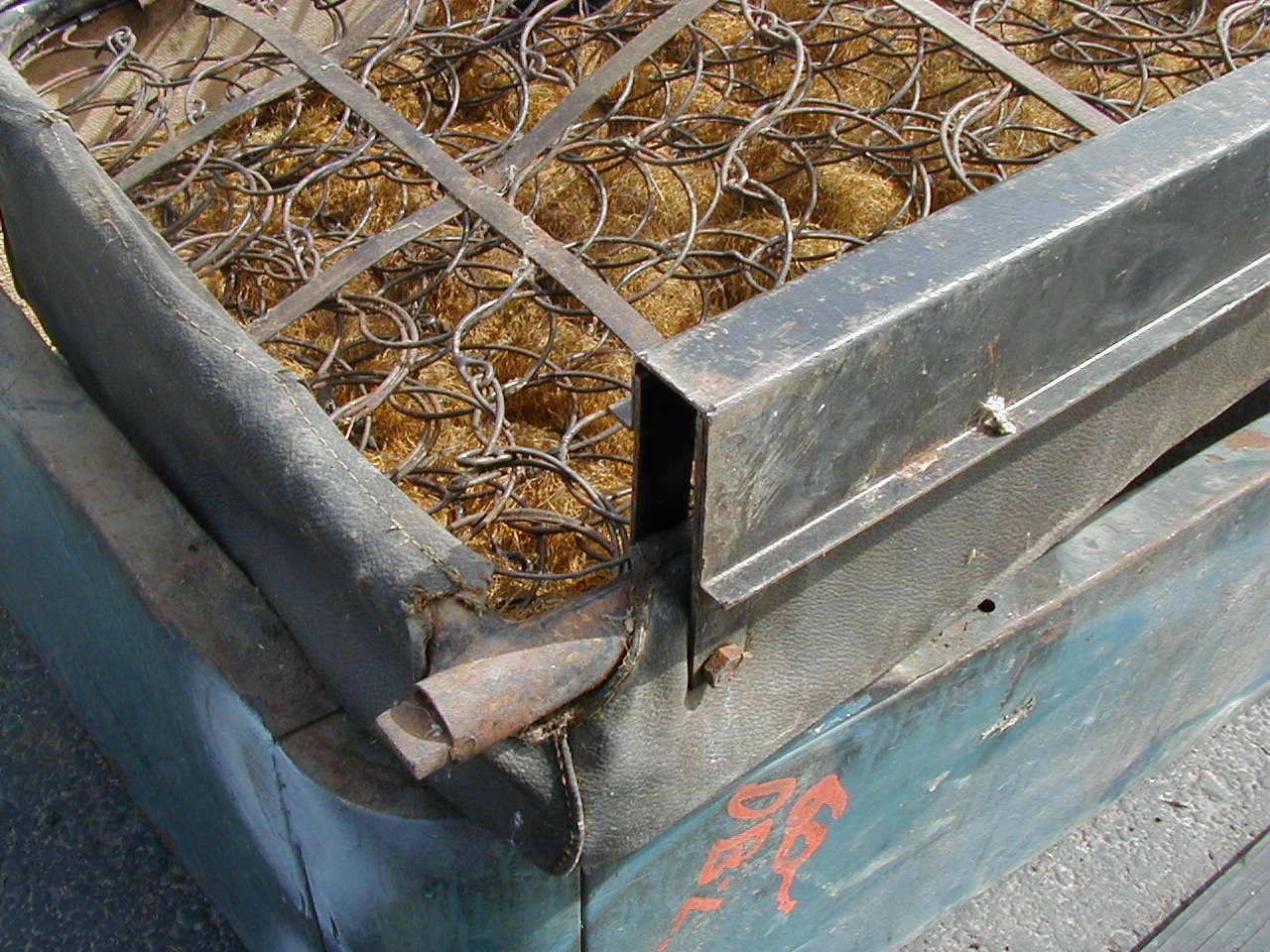

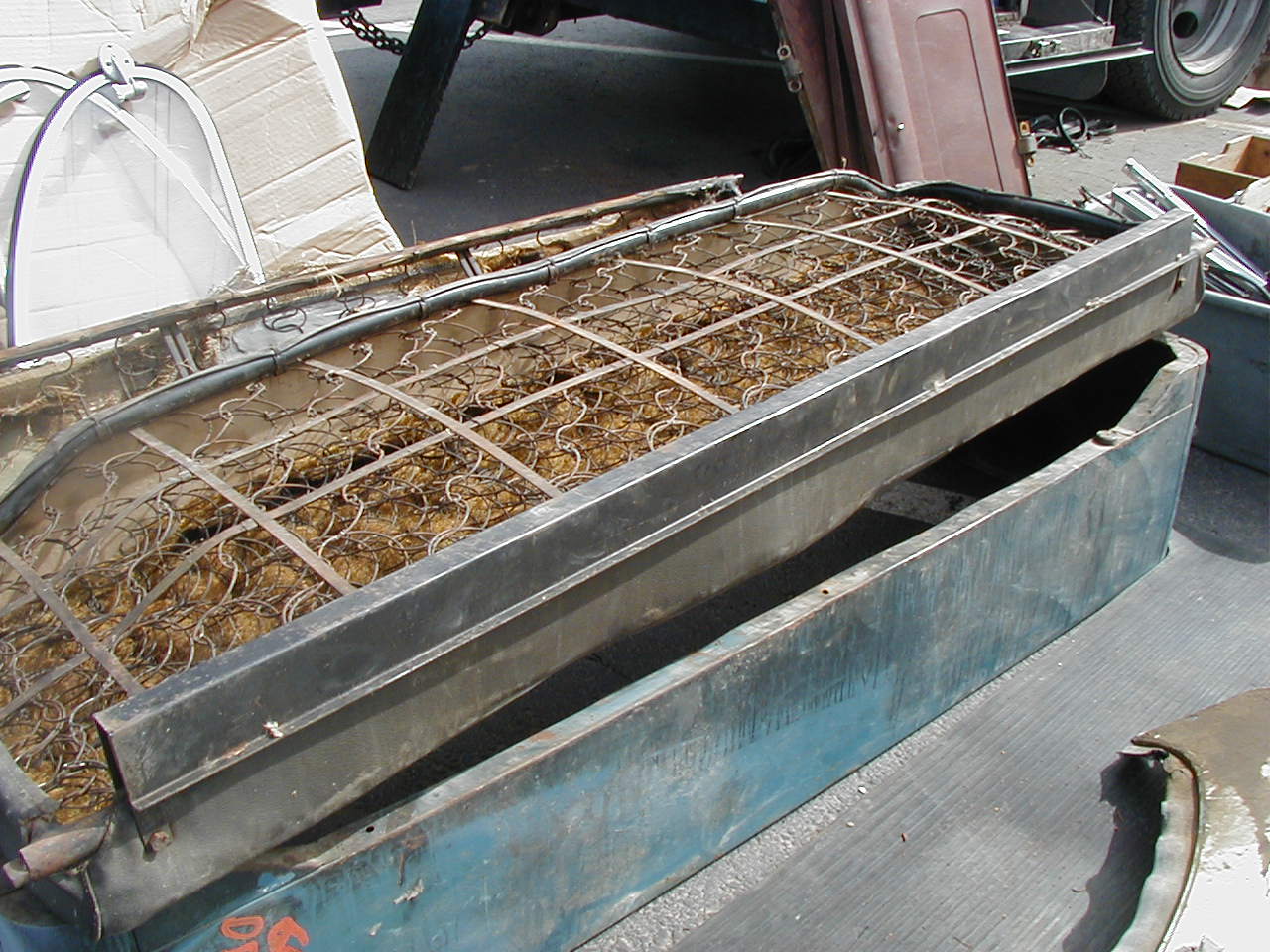

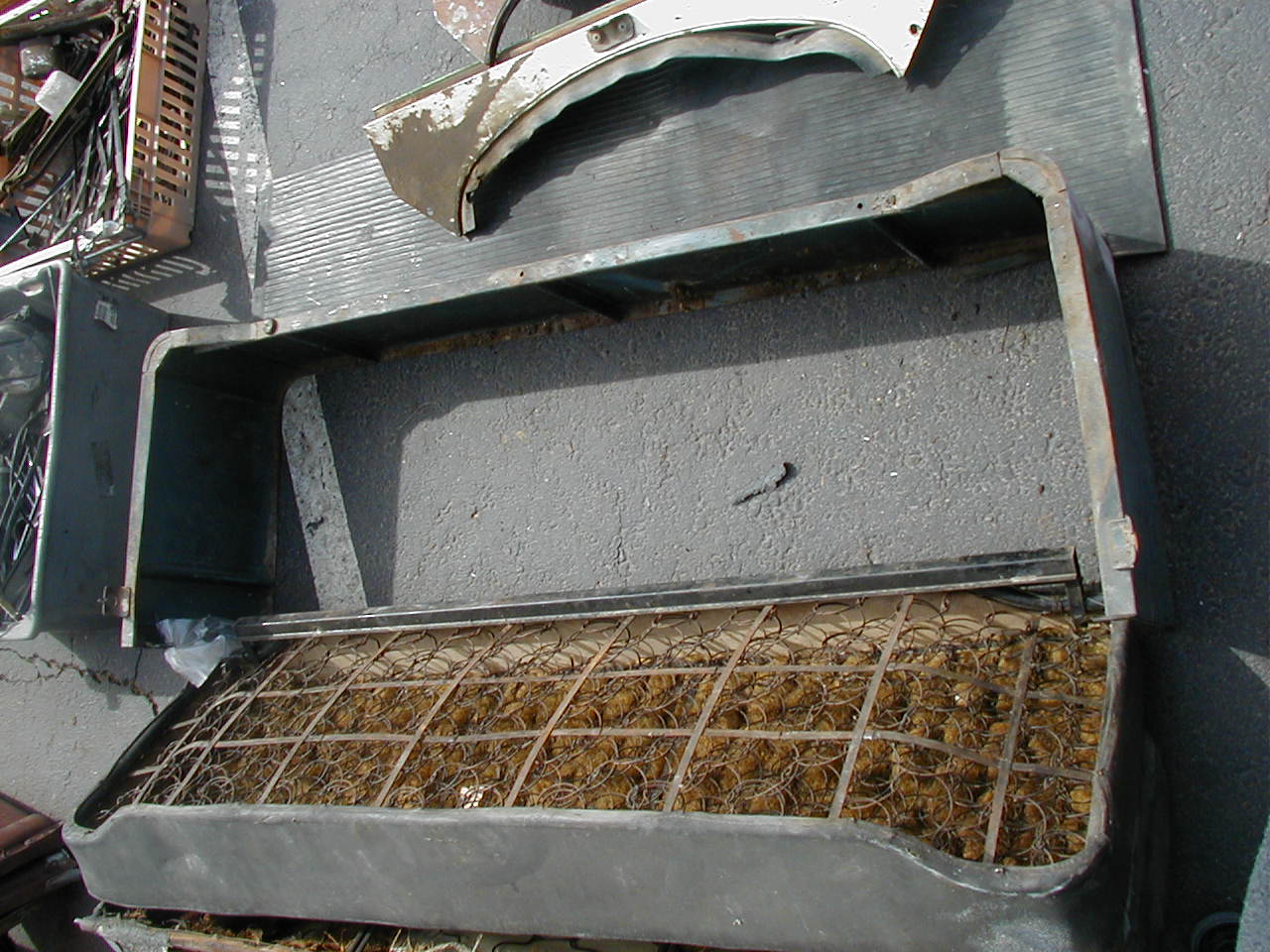

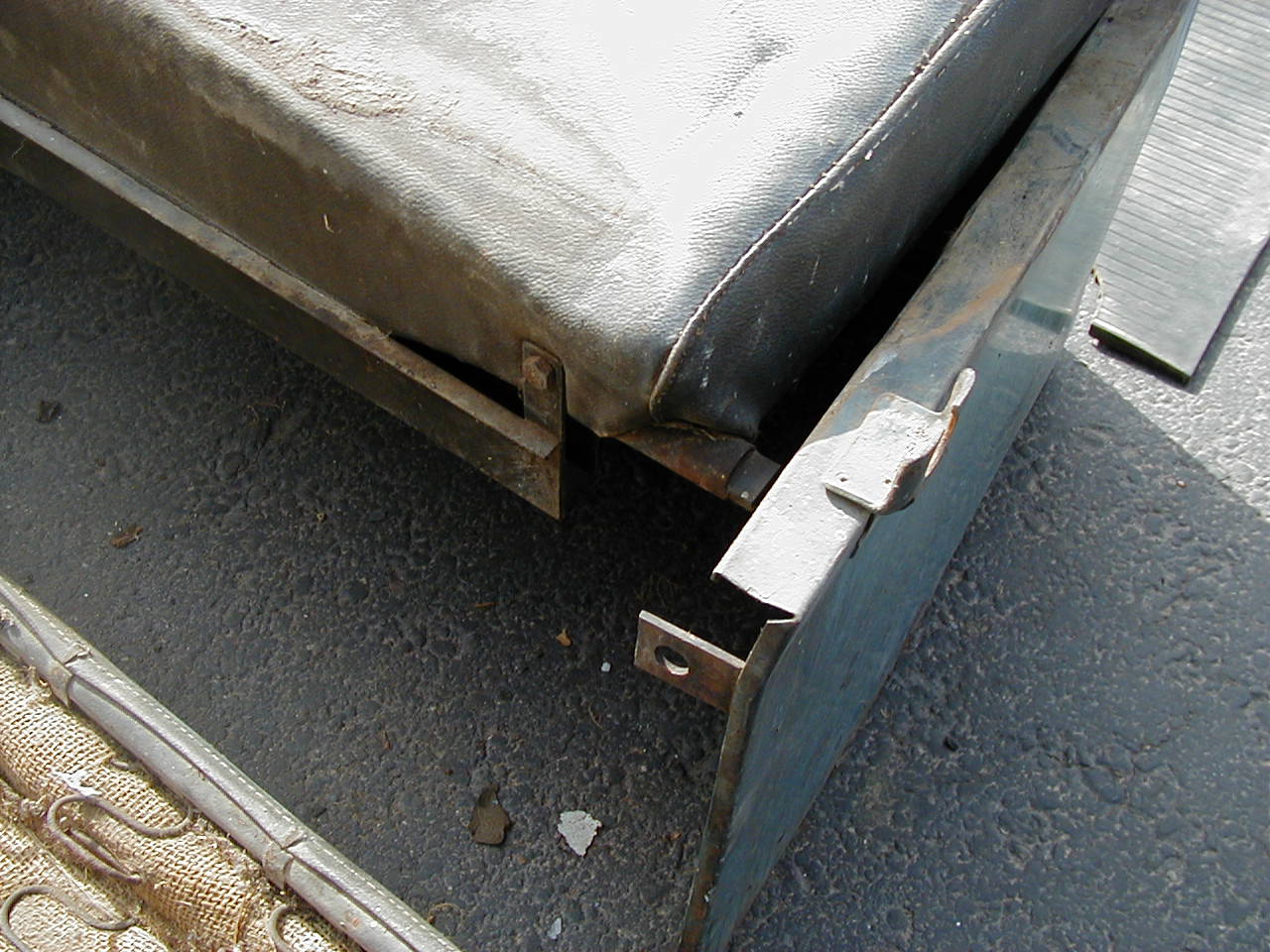

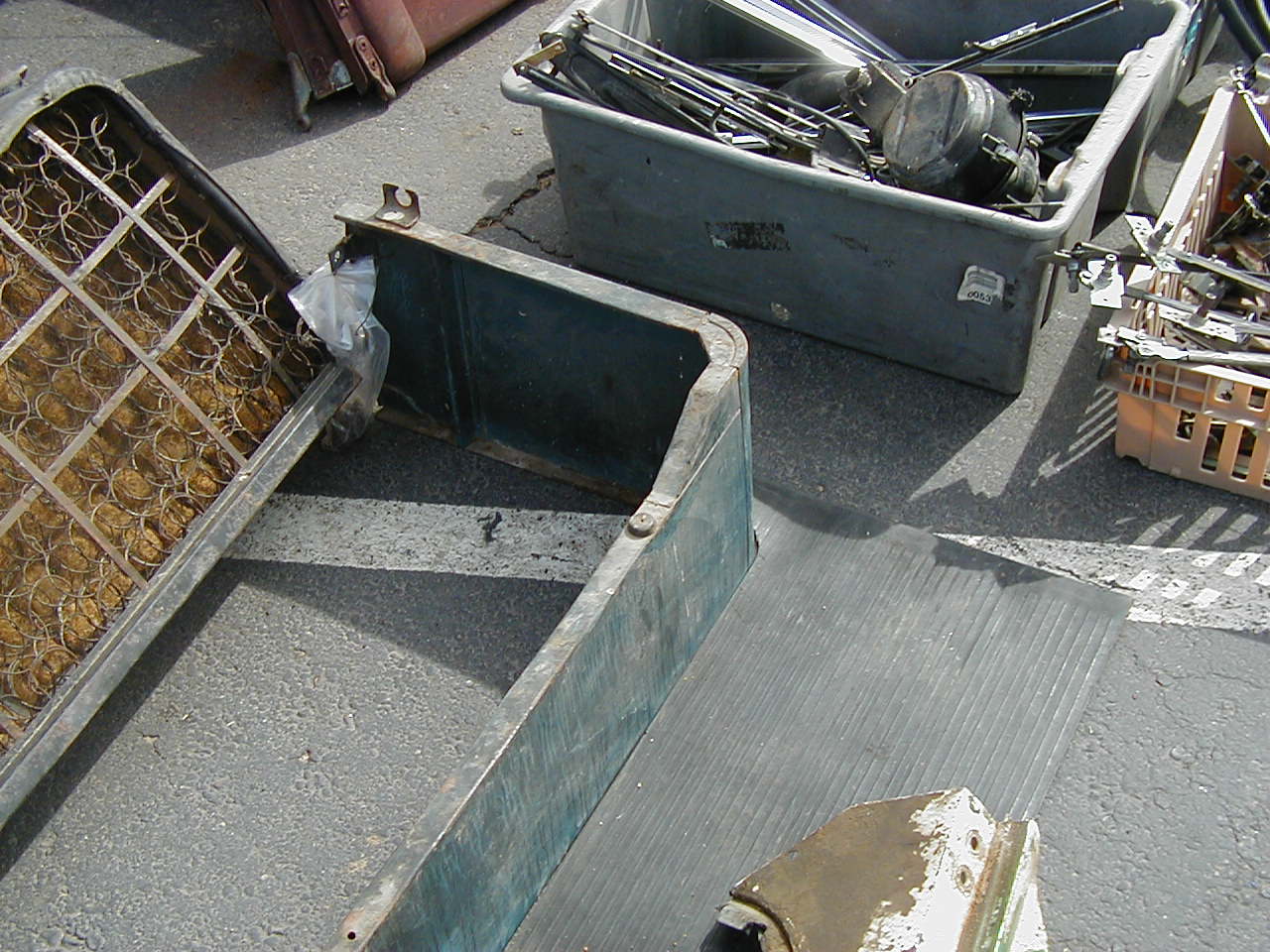

59to60seat5.JPG (201787 bytes) 59to60seat1.jpg (205527 bytes) 59to60seat2.JPG (210303 bytes) 59to60seat3.JPG (212831 bytes) 59to60seat6.JPG (205087 bytes)

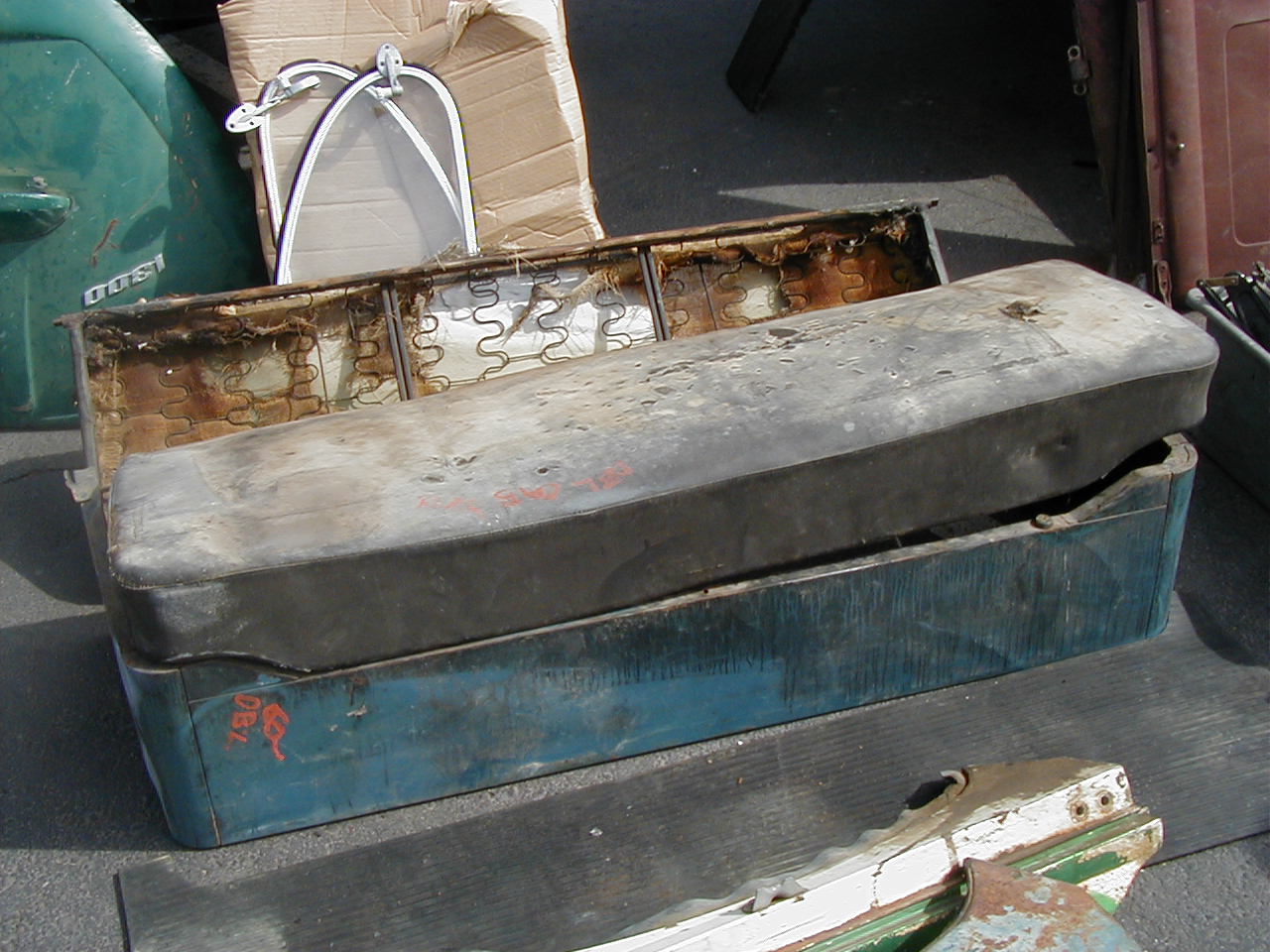

 Curved pedestal, mounting tabs point outward. Grey upholstery
(need more pics)

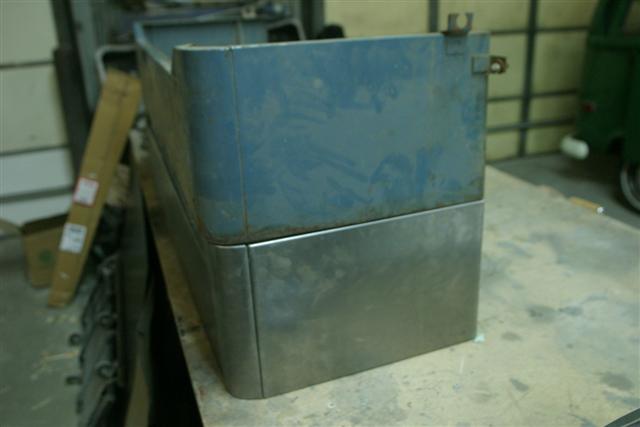

Flat pedestal, mounting tabs point outward. Mesh Grey upholstery. Notice the 2 circle pressings and strength notches across the top ridge.

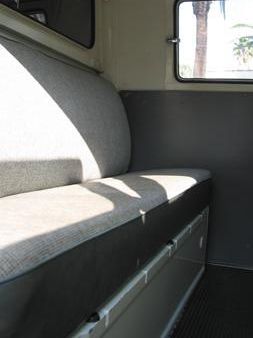

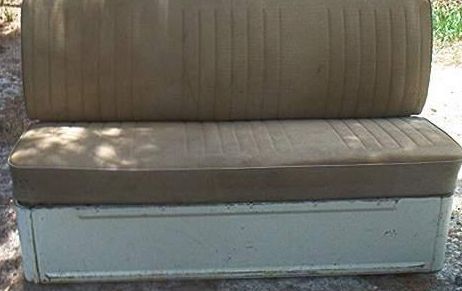

68 and later

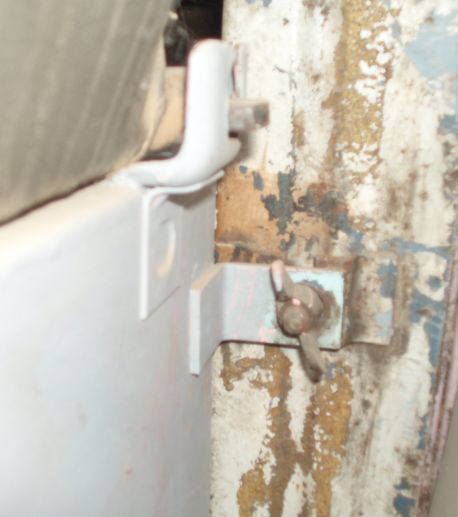

Flat with no circle pressings

Other related items of detail
(Please contact me if you have more information)

rear seat positioning bar
I know this was used on pre61 seats but am unsure when it stopped. Anyone have more info?

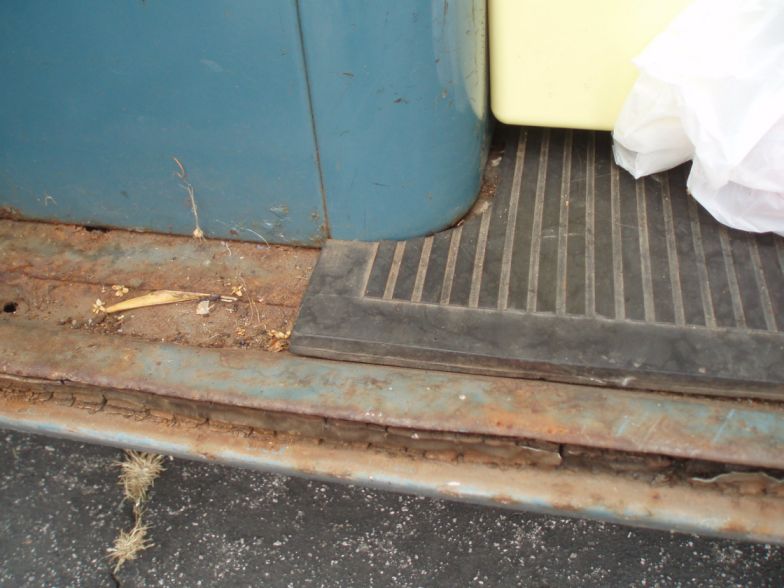

Notice the rib pattern stops early and the strip only extends to the pedestal joint.

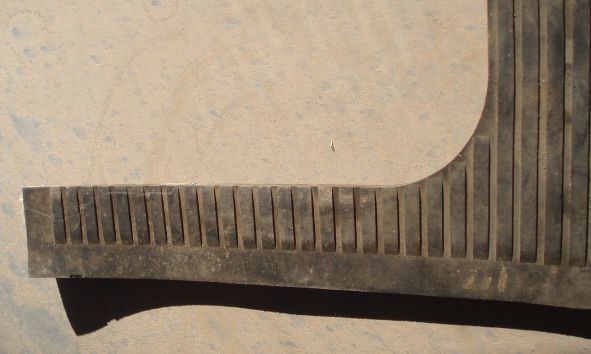

The strip extends all the way back along with the ribs.
