For
some odd reason, many trucks got the "trailer light" treatment done to the rear
end. While this increased visibility for other drivers, this of course damaged the body
due to the enlarged holes. |
|
1952=>mid
57 |
|
| 52-57 Specs: |
From the top of bed lip to the
top of the hole is approx 6 1/2" From the corner edge at the engine lid to the edge of the hole is approx 1 3/4" The hole is 2 7/16" from side to side |
late
57=>1958 |
|
| 57-58 Specs: |
Same as above, except there were two 1/8" holes drilled, one at top and one at bottom of hole for the new mounting hardware to go thru. |
1959=>1962
|
|
| 59-62 Specs: |

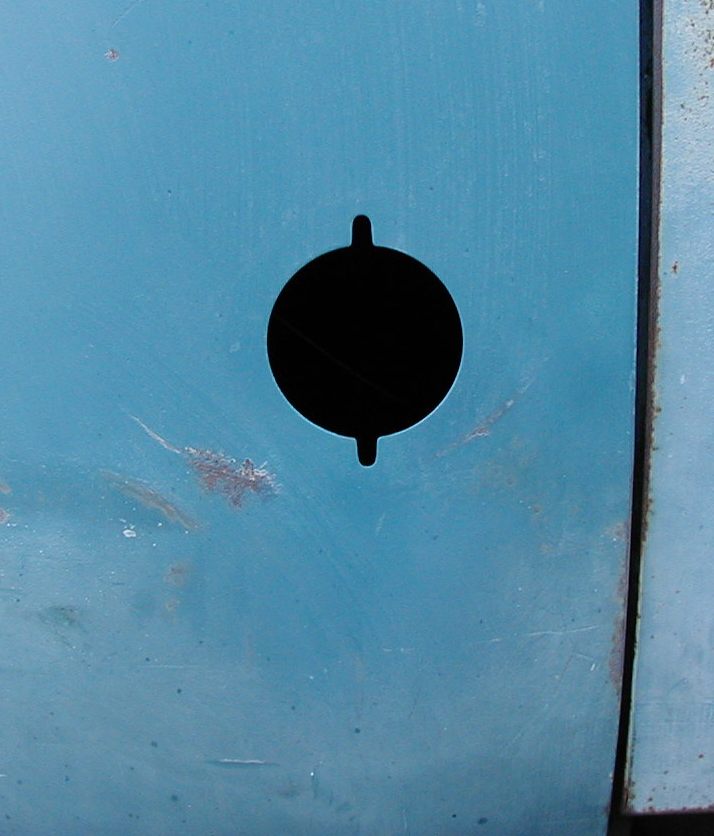

New taillight position. Holes were moved 12mm OUT and 100mm DOWN from where they currently were. Also 2 notches were added to the hole to clear the screw holes (see pic) the hole itself was the same size. |
1963=>1967
up |
|
| 63-67 Specs: |
Haven't seen anyone hack these. Specs not available |
